DTM1500
11KW
Product Description
Product Name：

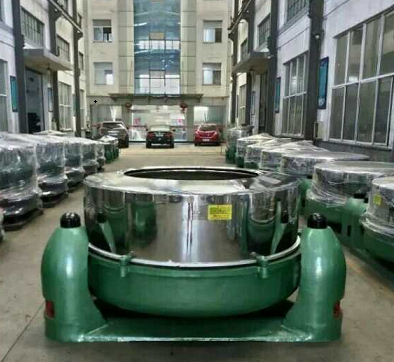

Hydro Extractor Three -clumn Frequency Automatic Hank Dewaterer
Feature:
1. The main structure of the three foot type Hydro Extractor is basically the same, namely the chassis, external shaft shell, shaft assembly and drum on the chassis all suspended by three booms in the spheric seat that above the three feet.
2. The boom equipped with buffer spring, such support method can make the drum automatically adjust the load in case any unbalanced condition due to non-uniform loading, in order to reduce the shock loading of spindle and bearings.
3. The Hydro Extractor driven by a motor through a centrifugal clutch triangle belt. centrifugal clutch makes the machine smooth starting and protecting for the overload motor.
| Type | Rotating cage inner dia.(mm) | Volume(kg) | Frequency capacity (kw) | Rotate speed (r/min) | Dimension L*W*H (mm) |
| DT-1200 | 1200 | 160 | 11 | 720 | 1750*1750*950 |
| DT-1350 | 1350 | 250 | 11 | 700 | 2050*2050*1050 |
| DT-1500 | 1500 | 500 | 15 | 700 | 2100*2100*1150 |
Wuxi Winto Machinery Equipment Co., Ltd is a specialized supplier equipped with team systems for the design and manufacture of scarf machinery and Tools, ranging from Dyeing Machine, Hydro Extractor, Raising Machine, Fringing Machine, Cutting Machine and electric cutter etc. which are well received by the customer both China and Abroad, most of our customers are very appreciated, because our machine greatly improve their work efficiency and products quality, liberate the workers from heavy, tired work, they work very easily now by our electric cutters.
We always learn, and create the advanced technology for the machine, in order to improve your work efficiency and reduce your labor cost.
