Wool Fabric Stenter Drying Machine With Chamber Fabric Drying

Product Name:

Cashmere Shawl Stenter Drying Machine With 2pcs Chambers 6 layers easy shipping

Application and advantages:

The machine is applied for the fabric finishing drying, like woolen，cotton, acrylic, polyester etc., so that the finished fabric has stable size, smooth feel. Can be customized.

Machine process flow：

Fabric feeding guide roller → adjustable tension tensioner → fabric guide roller → infrared expanding centering device → fabric overfeeding device → flat edge stripper → infrared photoelectric needle aligning device →fabric edge overfeeding device→ main chain → 2pcs chambers → cloth stripping device → pendulum frame → electrical control

Main Technical data：

Machine width: 2000mm

Working Width：1800mm

Speed：0~30m/min.

Total power: About 70KW

Fabric capacity: About 75meters

Drive mode: Variable frequency

The heat source is heated by steam

Pressure of compressed air used: 0.3-0.5MPa

Weight：about 45tons

Dimension：(L*W*H) 18660*4400*3000 mm

Composition of each unit:

1. 1.      Feeding and dropping rack

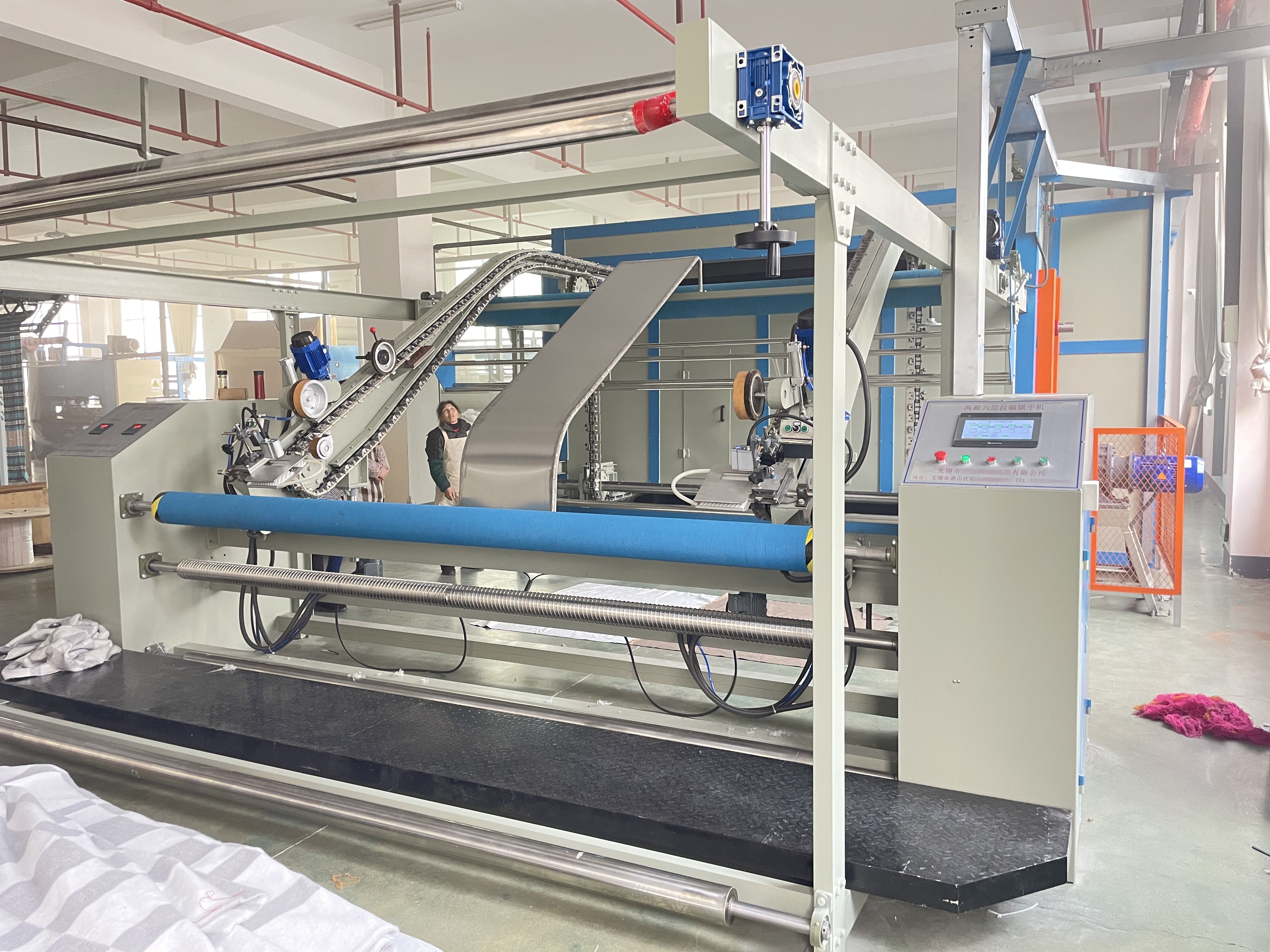

It is composed of profile steel frame, feeding pipe, cloth tightener, Photoelectric centering device, fabric guide roller, etc.

2. Dryer

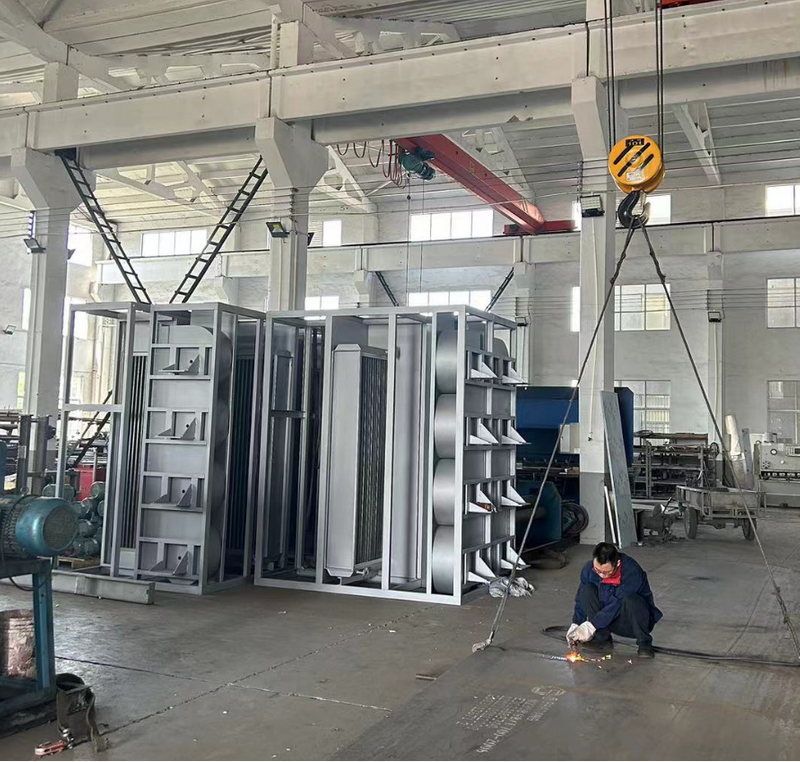

The chamber is equipped with automatic cloth surface overfeeding device, flat edge stripper and infrared automatic needle alignment, fabric edge overfeeding device, two sets of pressure cloth brushes on each side. The chain adopts domestic brand oil free chain, the track is casting guide rail, 3pcs chambers, equipped with 24pcs heating fans, controlled by three frequency conversion, and one unit exhaust fan. Heated by heat source steam.

The dryer frame is assembled and welded by national standard channel steel, the door panel is made of 1.5mm galvanized steel, and the air duct is made of 2mm galvanized steel.

3. Flat cloth dropping

Adopt section steel frame to ensure the stability of the equipment;

Stainless steel cloth dropping bucket; Durable;

4. Electrical part:

The electric cabinet is professionally manufactured according to national standards, with section steel structure, single door in front and no door behind, plastic sprayed surface, axial flow fan on the top and drip proof cover plate. The electrical control system is controlled by Siemens PLC and equipped with 10 inch WEINVIEW touch screen. The frequency inverter is SINEE, and the circuit breaker and contact are Schneider.
